Advent of Code: sonar sweep analysis

2nd Dec 2021 algorithms mathematics programming python

This article is an in-depth analysis of Python solutions to the “Sonar Sweep” problem, which is day 1 of Advent of Code 2021.

Sonar Sweep

The analysis that follows pertains to the first day of the Python Problem-Solving Bootcamp. Follow this link if you'd like to participate in the bootcamp:

to be a part of a community of highly-motivated individuals solving Advent of Code together; and
to receive notebooks like these with the analysis of the problems tackled.

In the analysis that follows you may be confronted with code that you do not understand, especially as you reach the end of the explanation of each part.

If you find functions that you didn't know before, remember to check the docs for those functions and play around with them in the REPL. This is written to be increasing in difficulty (within each part of the problem), so it is understandable if it gets harder as you keep reading. That's perfectly fine, you don't have to understand everything right now, especially because I can't know for sure what your level is.

Part 1 problem statement

(Adapted from here.)

You are given a report of depth measurements, like

The first order of business is to figure out how quickly the depth increases.

To do this, count the number of times a depth measurement increases from the previous measurement. (There is no measurement before the first measurement.)

In the example above, the changes are as follows:

199 (N/A - no previous measurement)
200 (increased)
208 (increased)
210 (increased)
200 (decreased)
207 (increased)
240 (increased)
269 (increased)
260 (decreased)
263 (increased)

In this example, there are 7 measurements that are larger than the previous measurement.

How many measurements are larger than the previous measurement in the input file inputs/01_sonar_sweep.txt?

My code was supposed to arrive at the answer 1292. You can get your own input from here.

# IMPORTANT: Set this to the correct path for you!
INPUT_FILE = "inputs/01_sonar_sweep.txt"

Solutions

Baseline solution

The problem statement asks us to traverse the depth reports and to compare the current measurement with the previous one.

The underlying idea is that, when talking about a sequence (for example, a list of measurements), a relationship of “previous” translates into subtracting 1 to the index at hands. Similarly, a relationship of “next” translates into adding 1 to the index.

The only thing we need to be careful about is ensuring we stay within the boundaries of the sequence, so that doing +1 or -1 in an index still gives a valid index.

This translates directly into this solution:

with open(INPUT_FILE, "r") as f:
    depths = f.readlines()

    count = 0
    for i in range(1, len(depths)):
        if int(depths[i - 1]) < int(depths[i]):    # Compare previous with the current
            count += 1

    print(count)

If we stick to the “compare with the previous” interpretation, then the indices that matter are i - 1 (the previous item) and i (the current item); and, therefore, i must start at 1. This means we use range(1, len(depths)).

If we go with the “compare with the next” interpretation, then the indices that matter are i (the current item) and i + 1 (the next item). For that, our range needs to end earlier than len(depths):

with open(INPUT_FILE, "r") as f:
    depths = f.readlines()

    count = 0
    for i in range(len(depths) - 1):
        if int(depths[i]) < int(depths[i + 1]):    # Compare current with “the next”
            count += 1

    print(count)

Free resources ASAP

When using a with statement to access a file, you know that your file is automatically closed when you leave the with statement. You also know that the with statement is nice because it will still close the file if, for example, your code throws an error. That's very convenient, and a lovely reason to use the with statement.

However, while you are inside the with statement, the file is opened and being used by the operating system. In Python, it is a good practice to avoid nesting unnecessary things. In particular, put as little code inside the with statement as possible.

In our case, because we use .readlines to read the whole file, we can leave the with statement immediately:

with open(INPUT_FILE, "r") as f:
    depths = f.readlines()

count = 0
for i in range(len(depths) - 1):
    if int(depths[i]) < int(depths[i + 1]):
        count += 1

print(count)

Trying to keep the indentation level as low as possible (trying to keep your code flat, instead of nested) is something that is advocated for in the “Zen of Python”. You can watch a clip of a talk of mine where I talk about this, and explain it, here (it's at minute 17:11 of the linked video).

The range of the length

Another frequent anti-pattern in Python is the excerpt for i in range(len(...)). Most of the times, that for loop isn't what you really wanted to use. Python has very powerful for loops, and the for i in range(len(...)) is a pattern that we inherited from languages like C. In Python, we tend to use built-ins like enumerate and zip .

Another hint at the fact that the loop we care about is not the range(len(...)), is that we don't really care about the indices. Notice how range(len(something)) gives you all the legal indices associated with something, but what we really care about are the elements.

A slight improvement would be to recognise the enumerate pattern: enumerate is a good built-in to use if, in a for loop, you care about the current element and about the current index you are using. In our case, we care about the current index so that we can compute the index of the neighbouring element. So, we could try writing something like this:

with open(INPUT_FILE, "r") as f:
    depths = f.readlines()

count = 0
for i, num in enumerate(depths[:-1]):
    if int(num) < int(depths[i + 1]):
        count += 1

print(count)

In order to make this work, we are using a slice to ignore the last element from depths. After all, the slice [:-n] means “drop the last n elements”.

Another interesting thought would be to try and simplify the i + 1 part. The built-in enumerate accepts a start argument that specifies where the argument starts counting:

list(enumerate("code"))

[(0, 'c'), (1, 'o'), (2, 'd'), (3, 'e')]

list(enumerate("code", start=10))

[(10, 'c'), (11, 'o'), (12, 'd'), (13, 'e')]

Therefore, one might think that we could set start=1 to avoid having to perform the sum. If we do so, then we must be very explicit about what index we are using:

with open(INPUT_FILE, "r") as f:
    depths = f.readlines()

count = 0
for next_idx, num in enumerate(depths[:-1], start=1):
    if int(num) < int(depths[next_idx]):
        count += 1

print(count)

However, I personally don't like this. There is something here that makes me look for a better solution, although some might say I'm just being paranoid. But, the truth is, our if statement is very asymmetrical right now.

The solution lies elsewhere! The built-in zip is more correct here, because zip is used to pair sequences up. But what sequences do we want to pair up..? After all, we have a single sequence at hands!

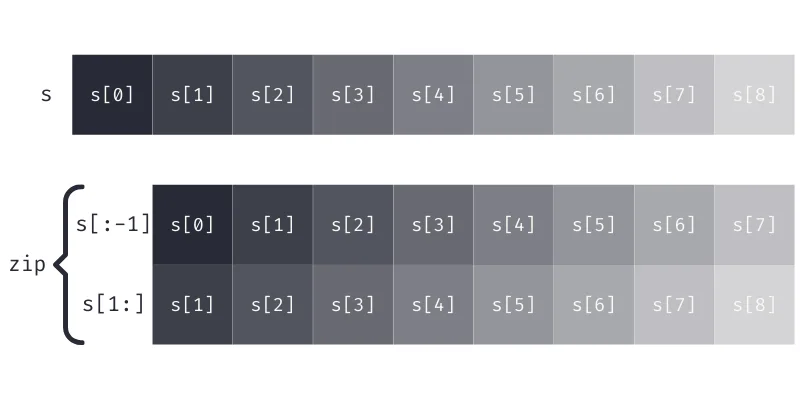

As it turns out, the both patterns of “this item & the next one” and “this item & the previous one” are easily written with zip. We just have to remember that, if seq is a sequence, then seq[1:] means “drop the first element” and seq[:-1] means “drop the last element”:

s = "coder"
print(s[:-1])
print(s[1:])
print(list(zip(s[:-1], s[1:])))

code
oder
[('c', 'o'), ('o', 'd'), ('d', 'e'), ('e', 'r')]

With this, we can rewrite our solution to be:

with open(INPUT_FILE, "r") as f:
    depths = f.readlines()

count = 0
for prev_, next_ in zip(depths[:-1], depths[1:]):
    if int(prev_) < int(next_):
        count += 1

print(count)

In the above, I wrote the name next_ because next is a built-in function. Then, I decided to use prev_ instead of prev just for symmetry. You can pick any other two names you prefer, or use for prev, next_ in ....

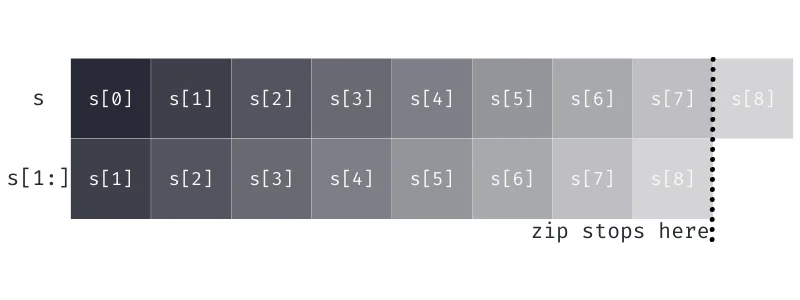

To simplify things a bit, especially when doing a similar thing with three or more iterables, we can actually omit the slices that are cutting from the end, because zip stops as soon as one iterable stops. In other words, we don't need to specify depths[:-1]:

With that in mind, we can remove the extra slice:

with open(INPUT_FILE, "r") as f:
    depths = f.readlines()

count = 0
for prev_, next_ in zip(depths, depths[1:]):
    if int(prev_) < int(next_):
        count += 1

print(count)

Repeated `int` conversions

If you look closely at the for loop we are writing, you will notice that most of the values in depth are going to be passed in to the built-in int twice. While that's not a terrible thing, it's double the work we need. All we need is for each number to be converted once, right?

Therefore, we can do the int conversion a bit earlier in the process:

with open(INPUT_FILE, "r") as f:
    depths = f.readlines()
depths = [int(d) for d in depths]

count = 0
for prev_, next_ in zip(depths, depths[1:]):
    if prev_ < next_:
        count += 1

print(count)

Of course, now we have another issue of repeated work: first, we go over the whole file to read the lines with .readlines, and then we go over the file contents to convert everything into an integer. We can do everything at once, if we convert the lines to integers while we read them:

with open(INPUT_FILE, "r") as f:
    depths = [int(line) for line in f]

count = 0
for prev_, next_ in zip(depths, depths[1:]):
    if prev_ < next_:
        count += 1

print(count)

In case you didn't know, you can iterate over a file, which allows you to iterate over the lines. That's what allowed us to convert into integers all the lines.

On top of that, you might be interested in knowing that int is forgiving, in that it allows the integers to be surrounded by whitespace:

13 == int("13\n") == int("       13        ") == int("\t\t\n13 \n\t ")

True

A really long input file

Like I mentioned earlier, we need to consider if our input file fits into memory or not. Up to now, we have been reading the while file at once, but we don't need to! We just saw we can iterate over f lazily, so we can leverage that for our own solution.

When we do that, notice that throughout our comparison loop we will need to be reading new values from the file. Thus, if the file is large and we can't read all of it at once, we need to keep it open. In other words, we have to indent our code again.

On top of that, because we are assuming the file is very big, we can no longer create the list of depths! Thus, we have two options:

we can write a generator expression for depths; or
we can use a map with map(int, f).

Using a generator expression entails converting the [ ... ] in the list comprehension to ( ... ):

with open(INPUT_FILE, "r") as f:
    depths = (int(line) for line in f)

    count = 0
    for prev_, next_ in zip(depths, depths[1:]):
        if prev_ < next_:
            count += 1

    print(count)

---------------------------------------------------------------------------

TypeError                                 Traceback (most recent call last)

~\AppData\Local\Temp/ipykernel_15904/748196112.py in <module>
      3
      4     count = 0
----> 5     for prev_, next_ in zip(depths, depths[1:]):
      6         if prev_ < next_:
      7             count += 1

TypeError: 'generator' object is not subscriptable

However, as we do so, the depths[1:] stops working because generators are not indexable/sliceable. This shows a weakness in our solution!

Thankfully, there are two good solutions! Starting with Python 3.10, there is a function called itertools.pairwise that implements the exact zip pattern we wanted:

from itertools import pairwise

with open(INPUT_FILE, "r") as f:
    depths = (int(line) for line in f)

    count = 0
    for prev_, next_ in pairwise(depths):
        if prev_ < next_:
            count += 1

    print(count)

If you don't have Python 3.10 (or older), you can define your own pairwise using itertools.tee.

This isn't beginner-level Python, so feel free to skip this bit:

from itertools import tee

def pairwise(it):
    """Mock `itertools.pairwise` for Python versions below 3.10."""
    prev_, next_ = tee(it, 2)     # Split `it` into two iterables.
    next(next_)                   # Advance once.
    yield from zip(prev_, next_)  # Yield the pairs.

with open(INPUT_FILE, "r") as f:
    depths = (int(line) for line in f)

    count = 0
    for prev_, next_ in pairwise(depths):
        if prev_ < next_:
            count += 1

    print(count)

Counting by incrementing

In all of the solutions above we have been counting by incrementing the count variable only when the depth test passes. However, there is a different approach to this, inspired by the languages where Boolean values are just 0s and 1s. Instead of checking with an if, we just add the value of the condition to count:

with open(INPUT_FILE, "r") as f:
    depths = (int(line) for line in f)

    count = 0
    for prev_, next_ in pairwise(depths):
        count += prev_ < next_

    print(count)

When prev_ < next_ is True (and the if statement would pass the test, incrementing count by one), the statement count += True increments count by one. When prev_ < next_ is False (and the if statement would not increment count), the statement count += False increments count by zero.

After all, Boolean values can be treated as integers:

1 + True

1 + False

This has to be used with caution, though, and is not always advisable.

Summing the conditions

However, moving the condition to the value that is being incremented gives rise to another implementation.

After all, the pattern

accumulator = 0
for element in iterable:
    accumulator += foo(element)

is equivalent to

sum(foo(element) for element in iterable)

Therefore, we can rewrite our solution to be a sum:

with open(INPUT_FILE, "r") as f:
    depths = (int(line) for line in f)

    count = sum(prev_ < next_ for prev_, next_ in pairwise(depths))

    print(count)

Using more `itertools`

If you want to study itertools a bit further, I leave you with the exercise of studying this terser solution:

from itertools import pairwise, starmap
from operator import le

with open(INPUT_FILE, "r") as f:
    print(sum(starmap(le, pairwise(map(int, f)))))

Hint: start by understanding why this version works:

with open(INPUT_FILE, "r") as f:
    depths = (int(line) for line in f)
    le = lambda l, r: l < r

    print(sum(le(*args) for args in pairwise(depths)))

Part 2 problem statement

(Adapted from here.)

Instead, consider sums of a three-measurement sliding window. Again considering the above example:

199  A
200  A B
208  A B C
210    B C D
200      C D E
207        D E F
240          E F G
269            F G H
260              G H
263                H

Start by comparing the first and second three-measurement windows. The measurements in the first window are marked A (199, 200, 208); their sum is 199 + 200 + 208 = 607. The second window is marked B (200, 208, 210); its sum is 618. The sum of measurements in the second window is larger than the sum of the first, so this first comparison increased.

Your goal now is to count the number of times the sum of measurements in this sliding window increases from the previous sum. So, compare A with B, then compare B with C, then C with D, and so on. Stop when there aren't enough measurements left to create a new three-measurement sum.

In the above example, the sum of each three-measurement window is as follows:

A: 607 (N/A - no previous sum) B: 618 (increased) C: 618 (no change) D: 617 (decreased) E: 647 (increased) F: 716 (increased) G: 769 (increased) H: 792 (increased)

In this example, there are 5 sums that are larger than the previous sum.

Consider sums of a three-measurement sliding window. How many sums are larger than the previous sum in the input file inputs/01_sonar_sweep.txt?

My code was supposed to arrive at the answer 1262. You can get your own input from here.

Sum over a triplewise

Sadly, itertools does not have such a function. You can take a look at the custom pairwise defined above, and try your hand at implementing a triplewise function, that returns three consecutive elements from an iterable.

Skip the definition, if you want, but look at the example usage:

from itertools import tee

def triplewise(it):
    it1, it2, it3 = tee(it, 3)
    next(it2); next(it3); next(it3)
    yield from zip(it1, it2, it3)

list(triplewise("coder"))

[('c', 'o', 'd'), ('o', 'd', 'e'), ('d', 'e', 'r')]

With the function triplewise (which doesn't exist in itertools, but exists in more_itertools , along with many other useful functions!), we could write a rudimentary function that keeps computing the value of the sum of the current window, and compares it to the previous sum:

with open(INPUT_FILE, "r") as f:
    depths = [int(line) for line in f]

count = 0
sum_prev = float("+inf")
for triple in triplewise(depths):
    sum_ = sum(triple)
    if sum_prev < sum_:
        count += 1
    sum_prev = sum_

print(count)

This works, but now we have “regressed” in a way.

Part 1 and part 2 are very similar in structure. However, for part 1 we didn't need to have an auxiliary variable that we kept updating, and now we do...

Pairwise the triplewise

Part 1 and part 2 are exactly the same, except that part 1 had a window size of 1, and part 2 has a window size of 3. So, part 2 should be solvable with code similar to that of part 1! In part 1, we used a pairwise to compare the windows, so that's what we should be doing here:

with open(INPUT_FILE, "r") as f:
    depths = [int(line) for line in f]

count = 0
sum_prev = float("+inf")
for triple_prev, triple_next in pairwise(triplewise(depths)):
    if sum(triple_prev) < sum(triple_next):
        count += 1

print(count)

Wait, is this getting too complicated?!

Good! That's because we are overlooking something.

I suffer from this, but when we read a problem statement, we should spend a couple of minutes thinking about it...

Let's go back to the original problem statement and the example they showed:

199  A
200  A B
208  A B C
210    B C D
200      C D E
207        D E F
240          E F G
269            F G H
260              G H
263                H

How do we compare the sliding window A with the sliding window B? Notice how the windows A and B have a huge overlap! They overlap in the numbers 200 and 208; it's only the beginning of A and the end of B that change!

This is actually easy to spot in the baseline solution with indices. Let me include it here again, but let me realign the assignments to left and right:

with open(INPUT_FILE, "r") as f:
    depths = [int(line) for line in f]

count = 0
for i in range(3, len(depths)):
    left = depths[i - 3] + depths[i - 2] + depths[i - 1]
    right =                depths[i - 2] + depths[i - 1] + depths[i]
    if left < right:
        count += 1

print(count)

Or, better yet, let me copy & paste the additions directly into the if statement, removing the assignments altogether:

with open(INPUT_FILE, "r") as f:
    depths = [int(line) for line in f]

count = 0
for i in range(3, len(depths)):
    if depths[i - 3] + depths[i - 2] + depths[i - 1] < depths[i - 2] + depths[i - 1] + depths[i]:
        count += 1

print(count)

Why did I do this?

Because, now, I want to think about the condition of the if statement like a mathematical inequality. (Do you see where this is going?) Let me just abbreviate depths as d because I'm lazy:

\[ \require{cancel} \begin{align} d[i - 3] + {d[i - 2]} + {d[i - 1]} &< {d[i - 2]} + {d[i - 1]} + d[i] \implies \\ d[i - 3] + \cancel{d[i - 2]} + \cancel{d[i - 1]} &< \cancel{d[i - 2]} + \cancel{d[i - 1]} + d[i] \implies \\ d[i - 3] &< d[i] \end{align}\]

So, in essence, we can omit most of the terms from the comparison because they don't matter! They are being added to both sides of the scale (you can think of a < as a scale checking if the left side is lighter), and therefore they do not make a difference in the balance of the scale:

with open(INPUT_FILE, "r") as f:
    depths = [int(line) for line in f]

count = 0
for i in range(3, len(depths)):
    if depths[i - 3] < depths[i]:
        count += 1

print(count)

This is a pretty good solution.

Parametrising the window size

One (tiny) thing that is very worth the mention is that with this version, it becomes trivial to parametrise the window size:

WS = 3  # Window size.

with open(INPUT_FILE, "r") as f:
    depths = [int(line) for line in f]

count = 0
for i in range(WS, len(depths)):
    if depths[i - WS] < depths[i]:
        count += 1

print(count)

With the addition of the WS variable, the problem statement can change the window size to anything they'd like, that we can adjust our solution with the same ease.

In particular, if we change WS to 1, we get back the problem from part 1:

WS = 1

with open(INPUT_FILE, "r") as f:
    depths = [int(line) for line in f]

count = 0
for i in range(WS, len(depths)):
    if depths[i - WS] < depths[i]:
        count += 1
print(count)  # The value from part 1.

Handling big files lazily

The only thing left to mention is what we do if the file f can't be loaded to memory as a whole, because it's too big. In that case, depths can't be defined as a list comprehension, and thus depth won't be indexable like in the if statement.

In that case, we need to do something similar to the pairwise that we did before. Before, we did a pairwise because we wanted to compare each value to the one before it (index minus one). Now, we want to compare each value with the one three places before it (index minus three).

Then, we can use two functions from itertools: tee and islice; or we can keep track of the window by hand.

To do this by hand, we will keep track of a list whose size is one plus the window size. We start by filling this manual window, and then we keep comparing the two ends of the window:

WS = 3

with open(INPUT_FILE, "r") as f:
    depths = (int(line) for line in f)  # Using a lazy generator now.

    # Start by putting `WS` elements inside `window`.
    window = [next(depths) for _ in range(WS)]

    count = 0
    # When we get here, `depths` is already missing some elements from the beginning,
    # so we can already start comparing depth values.
    for elem in depths:
        window.append(elem)
        if window[0] < window[-1]:
            count += 1
        window.pop(0)  # Get rid of the oldest element in the window.

    print(count)

This is a pretty decent solution. The most confusing thing may be the way window is initialised, with the built-in next. next is a function that accepts a lazy generator and just spits out the next value of the lazy generator.

Here is an example:

gen_ints_to_10 = iter(range(10))

next(gen_ints_to_10)

next(gen_ints_to_10)

What's interesting about iterators is that, once you start going through them, you've “lost” the items you already saw. For example, if you iterate over gen_ints_to_10 with a for loop now, the 0 and the 1 will already be gone:

for num in gen_ints_to_10:
    print(num, end=" ")

2 3 4 5 6 7 8 9

If you are comfortable with this solution, you may want to study this next solution:

from itertools import islice, tee

WS = 3

with open(INPUT_FILE, "r") as f:
    depths = (int(line) for line in f)

    prev_it, it = tee(depths, 2)    # Split iterator in two.
    next_it = islice(it, WS, None)  # Skip WS elements from this iterator.

    count = 0
    for prev_, next_ in zip(prev_it, next_it):
        if prev_ < next_:
            count += 1

    print(count)

Conclusion

In one way or another, this problem showed that whenever we need to iterate over a sequence of values, we are likely to find useful tools in the itertools module.

We were careful to try and not do too much repeated work, and we also took a look at how our code would have to be different if the input data were too much to hold in memory at once.

If you have any questions, suggestions, remarks, recommendations, corrections, or anything else, you can reach out to me on Twitter or via email to rodrigo at mathspp dot com.

Become a better Python 🐍 developer 🚀

+35 chapters. +400 pages. Hundreds of examples. Over 30,000 readers!

My book “Pydon'ts” teaches you how to write elegant, expressive, and Pythonic code, to help you become a better developer. >>> Download it here 🐍🚀.

Previous Post Next Post

Advent of Code: sonar sweep analysis

Sonar Sweep

Part 1 problem statement

Solutions

Baseline solution

Free resources ASAP

The range of the length

Repeated `int` conversions

A really long input file

Counting by incrementing

Summing the conditions

Using more `itertools`

Part 2 problem statement

Similar baseline solution

Sum over a triplewise

Pairwise the triplewise

Parametrising the window size

Handling big files lazily

Conclusion

Become a better Python 🐍 developer 🚀

Random Article

Stay in the loop

Feeds

Popular Tags

Archives

Advent of Code: sonar sweep analysis

Sonar Sweep

Part 1 problem statement

Solutions

Baseline solution

Free resources ASAP

The range of the length

Repeated int conversions

A really long input file

Counting by incrementing

Summing the conditions

Using more itertools

Part 2 problem statement

Similar baseline solution

Sum over a triplewise

Pairwise the triplewise

Parametrising the window size

Handling big files lazily

Conclusion

Become a better Python 🐍 developer 🚀

Random Article

Stay in the loop

Feeds

Popular Tags

Archives

Repeated `int` conversions

Using more `itertools`
